Inconel Pipe/Tube
Wuxi Screw Metal Products CO., LTD.

‹

  • Inconel 601 Pipe/Tube
  • Inconel 601 Pipe/Tube
  • Inconel 601 Pipe/Tube
  • Inconel 601 Pipe/Tube

›

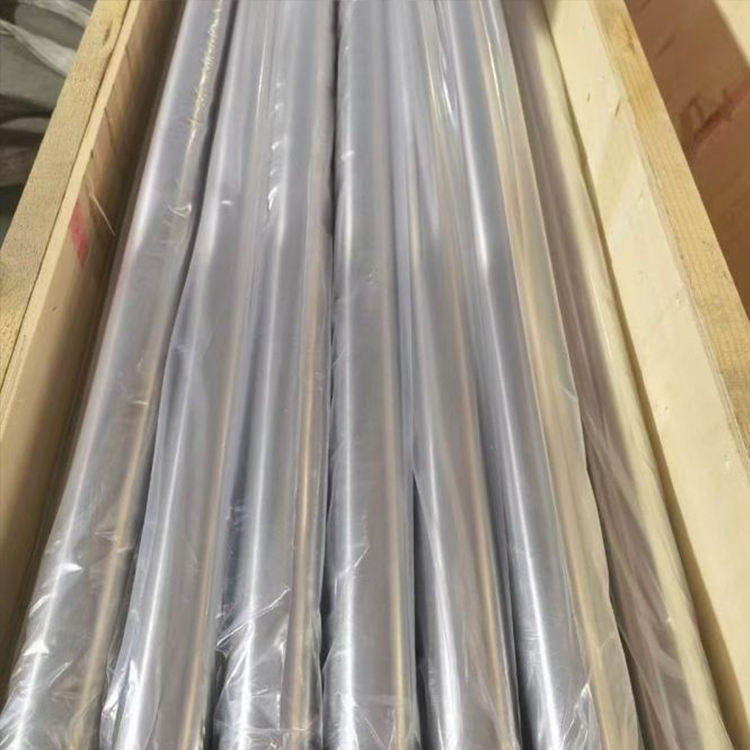

Inconel 601 Pipe/Tube

Certificates：ISO9001 & SGS
MOQ：Any MOQ
Payment Terms：T/T Or Negotiate
Delivery Time: 3-5 working days but depends on quantity
Samples：Samples can be provided but customers need to bear the freight cost

If you have any questions, please feel free to contact us.

8615376972420
nina@screwmetal.com
Request a Quote
Product Description

Inconel tube has high strength and toughness in the extreme high temperature applications. And Inconel alloys have excellent fatigue strength and stress-corrosion cracking resistance to chloride ions, so nickel alloy inconel tubing is suitable for conveying various solutions containing Cl and caustic soda with concentration <70% and many other fluids.As one of the first class inconel tubing suppliers and manufacturers in China, Wuxi Dingyuxinda manufactures inconel pipes with size range O.D 5 mm – 50.8 mm in most popular inconel alloys, including inconel 600, inconel 625 and inconel 718.


Product parameters

Inconel Pipe SpecificationASTM B 167 ASME SB 167 / ASTM B 829 ASME SB 829 / ASTM B 517 ASME SB 517
Inconel Pipe sizesSeamless Inconel Pipe: 6mm--530mm
Welded Inconel Pipe: 8mm-3000mm
Inconel Pipe ScheduleSCH5, SCH10, SCH40, STD, SCH80, SCH160
Inconel Pipe FormRound, Square, Hollow, Rectangular, Hydraulic, Straight Pipes, circular and oval etc.
Inconel Pipe LengthSingle Random, Double Random & Cut Length.
Inconel Pipe EndPlain End, Beveled End, Treaded.
ProcessCold rolled, cold drawn
OriginEuropean (UK), Japanese, Korean, US, Russian, Indian (Strictly No Chinese Material)
Inconel Pipe MarkingAll Inconel Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
Pipe FinishPolished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Surface180G, 320G, 400G Satin / Hairline(Matt Finish, Brush, Dull Finish)
400G, 500G, 600G or 800G Mirror finish
Material Test Certificates (MTC)Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2
TestHardness Test
Flattening Test
Pitting Resistance Test
Chemical Analysis – Spectro Analysis
Micro and MacroTest
Flaring Test
Intergranular Corrosion (IGC) Test
Intergranular Corrosion (IGC) Test
Positive Material Identification – PMI Testing
Applicationsteam trubine, acid environment, nuclear engineering
Specialized inLarge Diameter Inconel Pipe
We can also cut, thread, and groove Inconel Pipes to meet your specifications.


Product characteristics

  1. Has good resistance to reduction, oxidation, and nitriding medium corrosion

  2. Good stress corrosion cracking resistance at room temperature and high temperature

  3. Good resistance to dry chlorine and hydrogen chloride gas corrosion

  4. Good mechanical properties at sub-zero, room temperature and high temperature

  5. Due to its good creep rupture strength for the control of carbon content and grain size, it is recommended to be used in a working environment above 700 ° C.


Product applications

Inconel tube has many applications, including aerospace, automotive, medical, and chemical industries. Its versatility makes it a popular choice for many construction and infrastructure projects, where the material’s unique properties provide unmatched functionality and security. The alloy’s resistance to wear and tear, corrosion, and high temperatures makes it the ideal material for critical applications such as heat exchangers, pressure vessels, and tubing.





Chemical composition


Inconel 601

ChemistryMin%Max%
Ni5863
Cr2125
Fe
bal
Al11.7
C
0.10
Mn
1.0
S
0.015
Si
0.50
Cu
1.00


Manufacturing Process
Packaging
Shipping
FAQS

Q: Can we visit your factory?

A: Warmly welcome once we have your schedule we will pick you up.

Q: Can I get samples before order?

A: Yes, of course. we can produce by your samples.

Q:what is your delivery time?

A: Our delivery time is about one week, but timing is according to the quantity.

Q:What are your payment terms?

A: Our usual payment methods are T/T, but payment methods can be negotiated and customized with customers.

Q:What do your factory do regarding quality control?

A: We have obtained ISO, EN10204 3.1/3.2 and other certifications. From materials to products, we check every process to maintain good quality.

Q:How do you make our business long-term and good relationship?

A:We keep good quality and competitive price to ensure our customers benefit; We respect every customer as our friend and we sincerely do business and make friends with them. No matter where they come from.

Q:How about MOQ?

A: The MOQ is not limited, which can be customized according to customer requirements. Please feel free to leave us message if you have any question about us and our products.

Q:How about the shipping and packing？

1) About the small package, usually, the weight is not large than 70kg, we send it by DHL ,Fedex,UPS.
2) About the large package of more than 100kg, we send them by air.
3) For More than 100kg, we send it to the customer by air or by sea, if the customer needs it urgently, we will send it by air. if not needed urgently, we will send by sea, the freight cost will be more economic.
4) Anyway, we will choose the most economic and fast delivery way for customers.

Q:How do I place the order?

A: When you are satisfied with our quotation, we will offer the Proforma Invoice for your confirmation. Trade assurance is also acceptable.
After we received your prepayment, we will start to manufacture.
